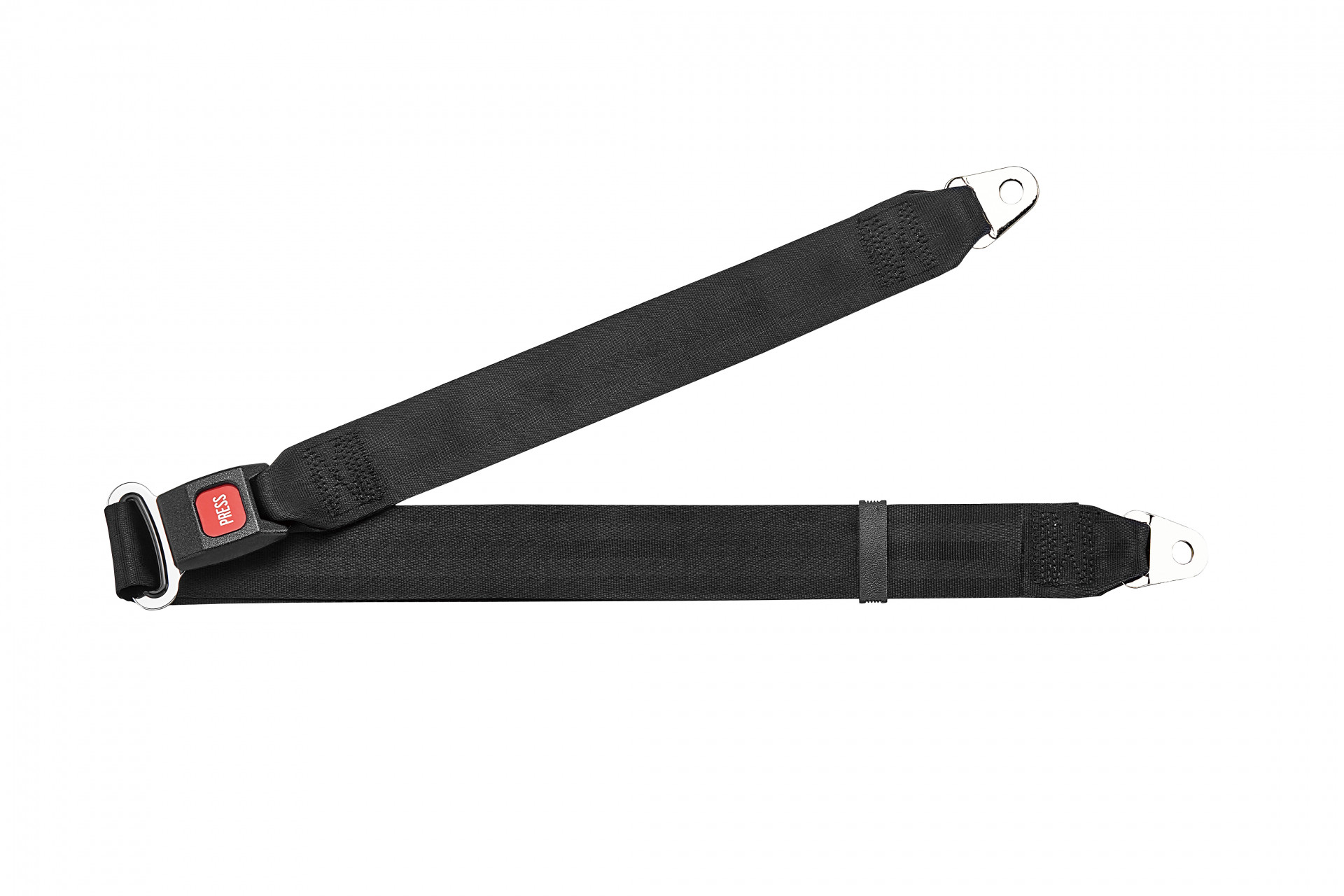

Seat Belt Buckles (CD-0100E-A01 Series)

CA-0100 series is design to be as easy as possible piece to keep safety and comfort.

It can be a replacement part for most of current existing one.

● user friendly

● great replacement part

● fit universal purpose

  CY-015A

  ✔ Dimension : 42.3mm X 49.5mm
 ✔  Material : Steel (Chrome)
 ✔  Webbing hole diameter : 26.9mm



  CA-0100E

  ✔ Dimension : 48mm X 65mm
  ✔ Material : Plastic + Steel (Elecric Light Black)




  CA-0120E

  ✔ Dimension : 48mm X 65mm
  ✔ Material : Plastic + Steel (Elecric Light Black)




     CW-1005

     ✔ Dimension : 74mm X 62.1mm
     ✔ Material : S50C + PU
     ✔ Webbing hole diameter : 50mm



 CW-1001A

 ✔ Dimension : 65.3mm X 44mm
 ✔ Material : S50C + Plastic
 ✔ Webbing hole diameter : 22.06mm



     CW-1111 (Flat bar)

     ✔ Dimension : 67mm X 63mm
     ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 51mm



     CW-1121 (Flat bar)

     ✔ Dimension : 67mm X 63mm
     ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 40mm



                         CW-1211 (Embossed rod diameter: 7.2mm)
     CW-1221 (Embossed rod diameter: 6.8mm)

     ✔ Dimension : 70mm X 61.5mm
   ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 51mm



                         CW-1212 (Embossed rod diameter: 7.2mm)
     CW-1221 (Embossed rod diameter: 6.8mm)

     ✔ Dimension : 70mm X 61.5mm
   ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 51mm



     CW-1231 (Embossed rod diameter: 7.2mm)

     ✔ Dimension : 68mm X 50mm
   ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 40mm



     CW-1232 (Embossed rod diameter: 7.2mm)

     ✔ Dimension : 68mm X 50mm
   ✔ Material : S50C + Plastic
                         ✔ Webbing hole diameter : 40mm
